Product Code |
Product description |
Product Picture |
Info |
Product Position |
SCEPTRA FINIAL |
>> | 335mm high by 80mm wide sits on the finial point of the roof |
||
RENAISSANCE CRESTING |
183mm tall x 500mm x 2 units = 1000mm - Sits on top of the ridge top cap |
|||
BAROQUE CRESTING |
>> | 173mm tall x 500mm x 2 units = 1000mm - sits on top of the ridge top cap |
||
ELIZABETHAN CRESTING |
>> | 215mm tall x 500mm x 2 units = 1000mm - sits on top of the ridge top cap |
||
L SHAPE EXTERNAL RADIUS COVER |
>> | used to clad internal 'L' speed lock hub/speed lock 2's and ridge claddings |
||
classic CRESTING |
>> | 205mm tall x 500mm x 2 units = 1000mm sits on top of the ridge top cap |
||
L SHAPE INTERNAL COVER |
>> | used to clad internal 'L' speed lock hub/speed lock 2's and ridge claddings |
||
TUDOR CRESTING |
>> | 136mm tall x 500mm x 2 units = 1000mm sits on the finial point of the roof |
||
LOW PROFILE CRESTING |
>> | used in conjunction with the low profile finial and sits on the ridge top cap |
||
classic FINIAL |
420mm high by 80mm wide sits AT the finial point of the roof |
|||
FLY MESH STRIP |
>> | Used inside the internal full ridge cladding to prevent insects entering ridge. |
||
LOW PROFILE FINIAL |
>> | used in conjunction with the low profile cresting |
||
MAIN RIDGE CARRAGE |
>> | sits on the main and half ridge bodies to hold the ridge top cap. Not used on basic wall plate PWLA or the ventilated |
||
RIDGE CROSS BRACE Not to be used to secure fans to ridge bodies |
>> | this is screwed across the ridge body for strength. Not to be used as tie bar or fan strap |
||
RIDGE JOINTING PLATE |
>> | this is required when 2 ridges are to be mechanically joined. Screwed to each body |
||
RADIUS END UNDERCLADDING EXTENTION SLIDE |
>> | Required on steep pitches when the internal radius end needs to be lower than normal |
||
RADIUS END UNDER CLADDING BRACKET |
>> | Required to fix internal radius cover to the ridge body. |
||
INTERNAL RADIUS END FIXING KIT |
required for the fixing of the internal radius end cladding |
|||
GABLE END COMPLETE |
end capping for the gable end. This includes finial disc. |
|||
GEORGIAN INTERNAL RADIUS COVER |
positioned on the end of ridge internal capping on Georgian roofs |
|||
HALF RIDGE TOP CARRIAGE |
>> | Used to secure the die cast ends to the main ridge |
||
GEORGIAN HALF RIDGE RADIUS END COVER |
connects to the half ridge top cap using silicone and star loc washers, requires brush. |
|||
VICTORIAN HALF RIDGE RADIUS END COVER |
>> | connects to the half ridge using internal radius end fixing kit |
||
GEORGIAN HALF RIDGE RADIUS END COVER |
>> | connects to the half ridge using internal radius end fixing kit |
||
VICTORIAN HALF RIDGE END CAP |
>> | connects to the half ridge top cap using silicone and star loc washers, requires brush. |
||
ROSE LOCK FIXING BRACKET |
used to fix the internal radius end cover to the ridge body |
|||
VICTORIAN INTERNAL RADIUS COVER |
positioned on the end of ridge internal capping on Victorian roofs |
|||
PIKESTAFF FINIAL |
>> | 320mm tall x 80mm wide. This is positioned on the radius end next to the cresting |
||
CROSS BRACE FIXING SCREWS |
>> | required to fix ridge cross brace to ridge |
||
V GROOVE 150mm UNDER CLADDING |
>> | sits directly under ridge body as internal cladding |
||
GEORGIAN RADIUS END CAP |
external radius end cover - also requires rad end brush, star loc washers and silicone to fix |
|||
EXTERNAL RIDGE TOP CAPPING |
>> | ridge body external top cap |
||
RIDGE TOP CARRAGE |
>> | Used to secure the die cast ends to the main ridge |
||
VICTORIAN RADIUS END CAP |
external radius end cover - also requires rad end brush, star loc washers and silicone to fix |
|||
RIDGE TOP CAP INLINE JOINTER |
>> | required to joint 2 ridge top caps together. Seal with silicone and star loc washers. This is also used on the half ridge top cap with and the fitter cutting down on site |
||
RIDGE FLASHING TRIM |
>> | positioned between the ridge top cap (KCP) and the wall, sealed with silicone and star loc washers and is then flashed over by installer. |
||
RIDGE / HALF RIDGE CAPPING JOINTER |
>> | sits at the top of the valley where it connects to the ridge bodies for weathering. |
||
MK5 FULL RIDGE MAIN BODY |
>> | Main body used on all double sided roofs. this product is punched and fly meshed |
||
VENTILATION BUTTON |
>> | This is used in conjunction with the punched glazing support trim |
||
RAIN BAFFLE BACK SECTION |
>> | this is placed in the back section of the full ridge body. Used with the rain baffle |
||
RAIN BAFFLE |
>> | This is placed on the top wing of the main ridge body for weather purposes |
||
RIDGE STRUCTURAL CARRIAGE SCREWS |
>> | used in conjunction with the structural ridge carriage |
||
CORONET FINIAL |
>> | 280mm tall x 80mm wide. fixes to the radius end cover |
||
VICTORIAN HALF RIDGE AND WOK INTERNAL CLADDING Small |
>> | used for the internal cladding on Victorian roofs, connects to the ridge hub using rose |
||
VICTORIAN HALF RIDGE AND WOK INTERNAL CLADDING Large |
>> | used for the internal cladding on Victorian roofs, connects to the ridge hub using rose |
||
GEORGIAN HALF RIDGE AND WOK INTERNAL CLADDING Small |
>> | used for the internal cladding on Georgian roofs, connects to the ridge hub using rose |
||
GEORGIAN HALF RIDGE AND WOK INTERNAL CLADDING Large |
>> | used for the internal cladding on Georgian roofs, connects to the ridge hub using rose |
||
GEORGIAN INTERNAL RADIUS END AND HALF WOK INTERNAL |
>> | used for the internal cladding on Georgian roofs, connects to the ridge hub using rose |
||
VICTORIAN INTERNAL RADIUS END AND HALF WOK INTERNAL |
>> | used for the internal cladding on 6ictorian roofs, connects to the ridge hub using rose |
||

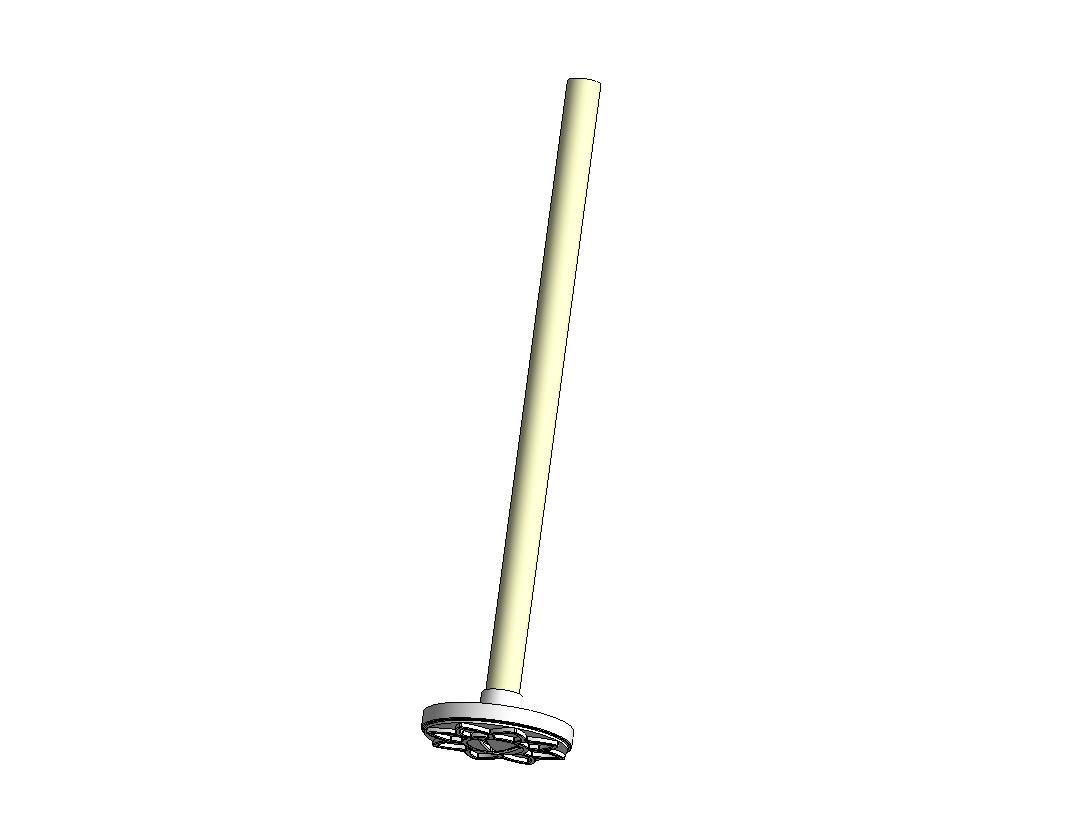

THREADED FIXING ROSE |
>> | used to secure the internal radius cladding and used with low profile cresting |
||
WOK THREADED FIXING ROSE |
>> | used to secure the internal radius cover to the under cladding bracket |
||
RIDGE 'T' BOLT AND FIXING PLATE |
>> | this is pushed up through the hole in the centre of the ridge body allowing the ridge capping to be secured |
||
HALF RIDGE FLY MESH |
>> | Used inside the internal full ridge cladding to prevent insects entering ridge. |
||
PLASTIC SNAP RIVET - RIDGE CAP |
>> | used to connect ridge top caps and radius end caps along with silicone |
