Product Code |
Product description |
Product Picture |
Info |
Product Position |

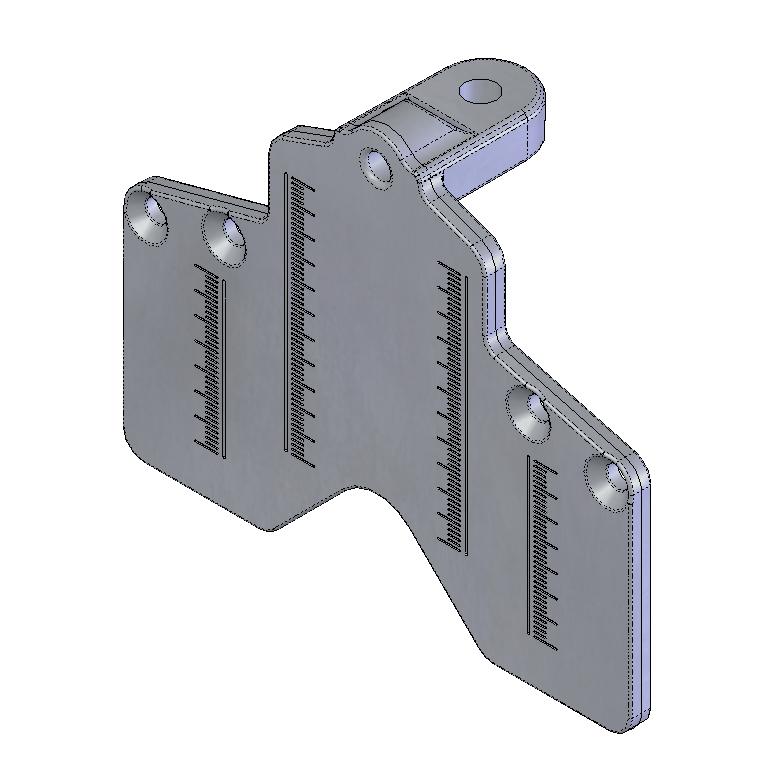

DIFFERENTIAL PITCH, RIDGE ADAPTOR |
>> | locates between the speed lock hub and the main ridge body |
||
DIFFERENTIAL PITCH, RIDGE SPACER |
>> | Used inconjunction with the DPA001 - differential pitch, ridge adaptor |
||
HALF RIDGE ADAPTOR PLATE |
>> | locates between the speed lock hub and the main half ridge body |
||
DIE CAST END AND RIDGE BOLSTER SCREWS |
>> | required to fix full ridge die cast ends to the KCS ridge top carriage and / or to secure the ridge bolster to the ridge body |
||
HALF RIDGE DIE CAST END UPPER SCREW |
>> | required to fix half ridge die cast ends to the KHS structural ridge top carriage |
||
HALF RIDGE ADAPTOR PLATE SCREWS |
>> | required to fix half ridge die cast ends to the KHS structural ridge lower carriage |
||
CAST RIDGE ADAPTOR 25 - 30 DEGREE |
>> | locates between the speed lock hub and the main ridge body |
||
CAST RIDGE ADAPTOR 15 - 20 - 35 DEGREE |
>> | locates between the speed lock hub and the main ridge body |
||
CAST RIDGE ADAPTOR 40 DEGREE |
>> | locates between the speed lock hub and the main ridge body |
||
SPEEDLOK HUB |
>> | locates on the end of the ridge bodies |
||
HALF RIDGE SPEEDLOCK HUB |
>> | locates on the end of the half ridge bodies |
||
HUB EATHERING SHIELD |
>> | locates on the top of the speed lock hub (replaces the foam bung) |
||
HALF RIDGE WEATHERING SHIELD LEFT AND RIGHT. These are a cut down from SLH002 half ridge shields
|
>> | locates on the top of the speed lock hub (replaces the foam bung) |
||
SPEEDLOK HUB 1/4 ADAPTOR |
>> | attaches to the external corner hub |
||
TIE BAR/INTERNAL ROSE BRACKET |
>> | used for both the tie bar and for the fixing of the internal radius cladding |
||
FULL WOK HUB WEATHERING SHIELD |
>> | locates on the top of the speed lock hub (replaces the foam bung) |
||
QUARTER WOK HUB WEATHERING SHIELD |
>> | used for weathering the quarter wok geo/vic internal corner die cast end |
||
EXT L SHAPE HUB WEATHERING SHIELD |
>> | locates on the top of the L shape floating ridge speed lock hub (replaces the foam bung) |
||
FULL WOK DIE CAST END |
>> | This is the central hub used to connect all glazing bars on all woks roofs up to 40.9 degree |
||
3/4 WOK DIE CAST END |
>> | This 3/4 external wok is used to take a wrap-a-round lean to to a house wall corner |
||
1/2 WOK DIE CAST END |
>> | used for geo/vic roofs which don't have enough room for a full ridge or have height/window obstructions |
||
1/4 WOK DIE CAST END Internal 90 degrees |
>> | used for geo/vic internal corner |
||
3/4 WOK HUB WEATHERING SHIELD |
>> | locates on the top of the speed lock hub (replaces the foam bung) |
||
1/2 WOK HUB WEATHERING SHIELD |
>> | locates on the top of the speed lock hub (replaces the foam bung) |
||

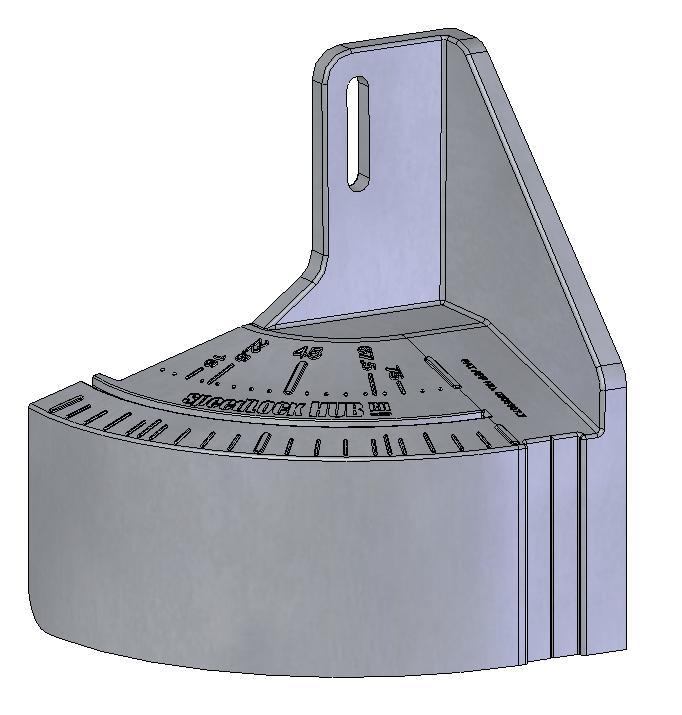

LEFT / RIGHT HALF RIDGE SPEEDLOCK HUB |
>> | used on half ridge scenario's |
||
SPEEDLOK HUB EXTERNAL CORNER |
>> | for use on 'L' shape conservatories (back external corner) |
